BSR202NL6327HTSA1 | Infineon Technologies

Name: Infineon Technologies N channel OptiMOS2 small signal transistor, 20 V, 3.8 A, PG-SC59-3, BSR202NL6327HTSA1
Brand: Infineon Technologies
SKU: 88S7580
Price: 0.25 EUR
Availability: OutOfStock

Infineon Technologies N channel OptiMOS2 small signal transistor, 20 V, 3.8 A, PG-SC59-3, BSR202NL6327HTSA1

Order No.: 88S7580

EAN: 4099879035042

MPN:

BSR202NL6327HTSA1

SP000257784

Series: BSR202

BSR202NL6327HTSA1 Infineon Technologies MOSFETs

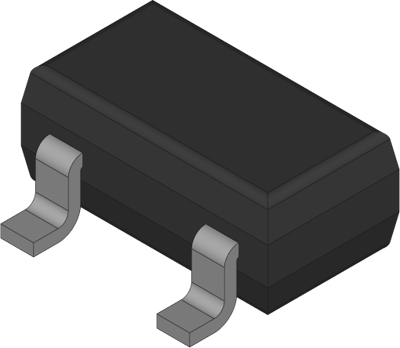

Image may differ

Key Specification:

Version N channel

max. Voltage 20 V

Max. current 3.8 A

drain-source on resistance RDS (on) max @VGS=10V 21 mΩ

Ordering Information:

NCNR product is not cancelable/returnable

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.2463 € *

Available: 0 pcs.

Leadtime: On Request **

Add to Cart

Total Price:

0.25 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

MOSFET, BSR202NL6327HTSA1, Infineon Technologies

Features

N-channel
Enhancement mode
Super logic level
Avalanche rated
dv/dt rated

Applications

Automotive
Consumer
DC-DC
eMobility
Motor control
Onboard charger
Telecom

Technical specifications

	Version	N channel
	drain-source on resistance RDS (on) max @VGS=10V	21 mΩ
	Gate Charge Qg @10V (nC)	5.8x10<sup>-9</sup> C
	Enclosure	PG-SC59-3
	max. Voltage	20 V
	Max. current	3.8 A
	max. operating temperature	150 °C
	min. operating temperature	-55 °C
	Assembly	SMD
	Power loss	0.5 W
