IRF4905STRRPBF | Infineon Technologies

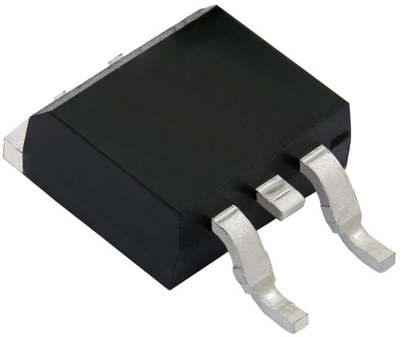

Infineon Technologies P-channel HEXFET power MOSFET, -55 V, -42 A, TO-252-3, IRF4905STRRPBF
Unit Price (€ / pc.)
1.3328 € *
Available: 0 pcs.
Leadtime: On Request **
MOSFET, IRF4905STRRPBF, Infineon Technologies
Features
- Advanced process technology
- Ultra low on-resistance
- Repetitive avalanche allowed up to Tj max
- Fast switching
Technical specifications
| Version | P-channel | |
| drain-source on resistance RDS (on) max @VGS=10V | 20 mΩ | |
| Gate Charge Qg @10V (nC) | 1.8x10<sup>-7</sup> C | |
| Enclosure | TO-252-3 | |
| max. Voltage | -55 V | |
| Max. current | -42 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | SMD | |
| Power loss | 170 W |
Download
Logistics
| Customs tariff number | 85412900 |
| MSL | MSL 1 |
| Original Packaging | Reel with 800 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
