IRL3705NPBF | Infineon Technologies

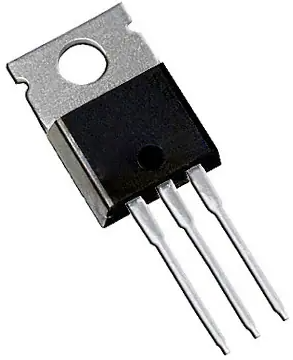

Infineon Technologies N channel HEXFET power MOSFET, 55 V, 89 A, TO-220, IRL3705NPBF
Unit Price (€ / pc.)
1.4518 € *
Available: 389 pcs.
Available in 5 Days: 800 pcs.
Leadtime: 10 Weeks **
Total Price:
1.45 € *
Price list
Quantity
Price per unit*
1 pcs.
1.4518 €
10 pcs.
1.3447 €
50 pcs.
1.2733 €
100 pcs.
1.2019 €
250 pcs.
1.1424 €
*incl. VAT plus shipping costs
**Subject to prior sale
MOSFET, IRL3705NPBF, Infineon Technologies
The IRL3705NPBF is a power MOSFET rectifier that utilizes advanced processing techniques to achieve extremely low on-resistance per silicon area.
Features
- Logic level gate driver
- Advanced process technology
- Dynamic dv/dt rating
- Fast switching
Applications
- DC motors
- Inverters
- SMPS
- Lighting
- Load switches
- Battery powered applications
Technical specifications
| Version | N channel | |
| drain-source on resistance RDS (on) max @VGS=10V | 10 mΩ | |
| Gate Charge Qg @10V (nC) | 9.8x10<sup>-8</sup> C | |
| Enclosure | TO-220 | |
| max. Voltage | 55 V | |
| Max. current | 89 A | |
| max. operating temperature | 150 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| Power loss | 170 W |
Download
Logistics
| Country of origin | PH |
| Customs tariff number | 85412900 |
| Original Packaging | Bar with 50 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
