TLE5309DE2211XUMA1 | Infineon Technologies

Hall effect sensor, 21 to 50 mT, 4.5-5.5 V, TLE5309DE2211XUMA1, TDSO-16, -40 to 125 °C, TLE5309DE2211XUMA1

Order No.: 89S1857
EAN: 4099879153760
MPN:
TLE5309DE2211XUMA1
SP001227888
Series: TLE5309
Infineon Technologies
TLE5309DE2211XUMA1 Infineon Technologies Sensor ICs

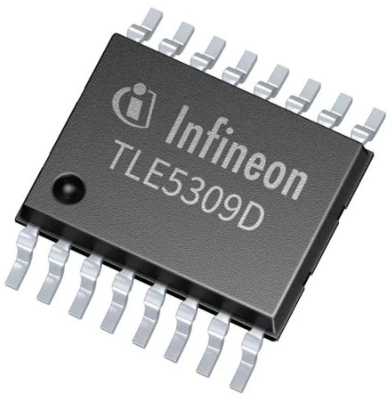

Image may differ
Unit Price (€ / pc.)
4.9266 € *
Available: 0 pcs.
Leadtime: 39 Weeks **
Total Price:
4.93 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2500 pcs.
4.9266 €

Sensor ICs, TLE5309DE2211XUMA1, Infineon Technologies

The TLE5309DE2211XUMA1 is an angled sensor that is designed for angular position sensing in safety critical automotive and non- automotive applications.

Features

  • Single and dual die sensor with AMR or GMR technology
  • Separate supply pins for top and bottom sensor
  • Low current consumption and quick start up
  • Output amplitude optimized for circuits with 3.3 V or 5 V supply voltage
  • Immune to airgap variations due to MR based sensing principle
  • Pre-amplified output signals for differential or single-ended applications
  • Diverse redundance combination of GMR sensor and AMR sensor in one package possible
  • High accuracy typically 0.1° overall angle error for AMR sensor

Applications

  • Automotive applications
Technical specifications
Version hall effect sensor
Enclosure TDSO-16
max. operating temperature 125 °C
measurement range 21 to 50 mT
min. operating temperature -40 °C
Assembly SMD
Voltage 4.5-5.5 V
Logistics
Customs tariff number 85423990
Original Packaging Reel with 2,500 pieces
