99978.305-CPR | INFRALAN

LSZH Installation cable, Cat 6A, 8-wire, 0.26 mm², AWG 23, white, 99978.305-CPR

Order No.: 26P2791
EAN: 4049759207229
MPN:
99978.305-CPR
INFRALAN
99978.305-CPR INFRALAN Data Cables Image 1

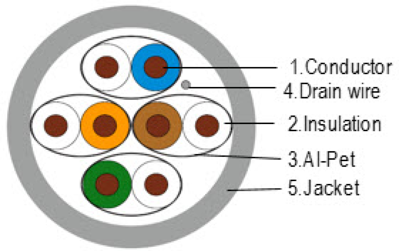

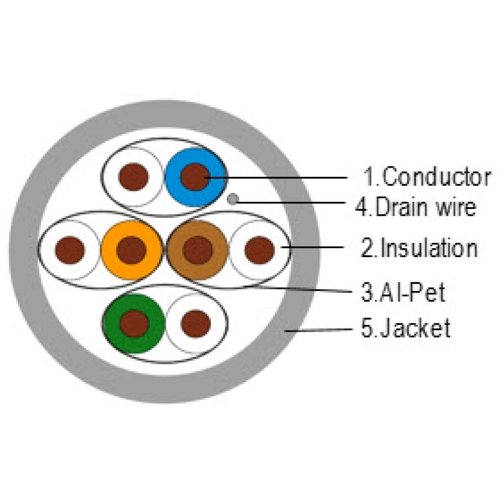

99978.305-CPR INFRALAN Data Cables Image 2

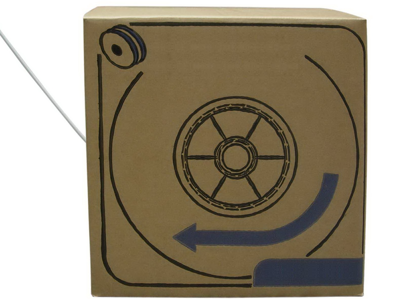

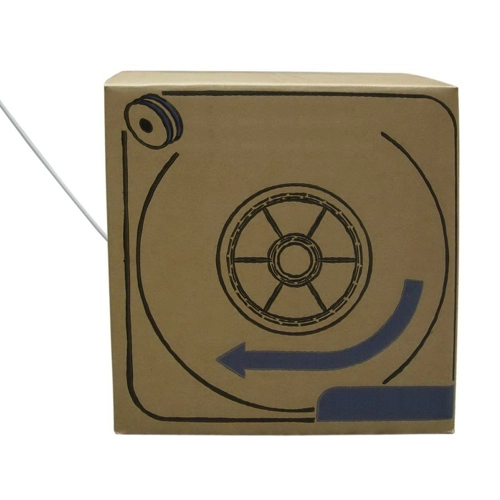

99978.305-CPR INFRALAN Data Cables Image 3
Image may differ
Unit Price (€ / pck.)
270.6774 € *
Available: 0 pck.
Leadtime: On Request **
Total Price:
270.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pck.
270.6774 €

Installation cable, 99978.305-CPR, INFRALAN

The Installation Cable U/FTP Cat.6A 500MHz can be installed for high-speed network connections.

Technical specifications
Core insulation material PE
Number of cores 8
Version network cable
Outer diameter 7.2 mm
AWG cross-section AWG 23
Colour white
Halogen free Yes
Category Cat 6A
Cable material copper, bright
Cable cross-section 0.26 mm²
Material LSZH
Shielding shielded
Drag chain suitable No
Temperature range (active) 0 °C to 50 °C
Temperature range (unmoved) -20 °C to 75 °C
Logistics
Country of origin CN
Customs tariff number 85447000

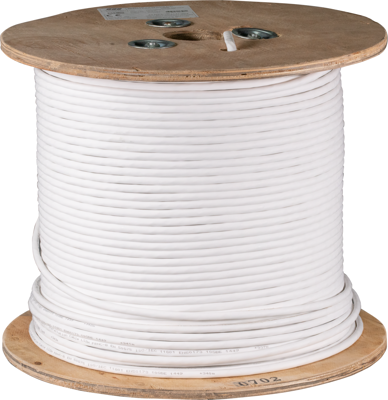

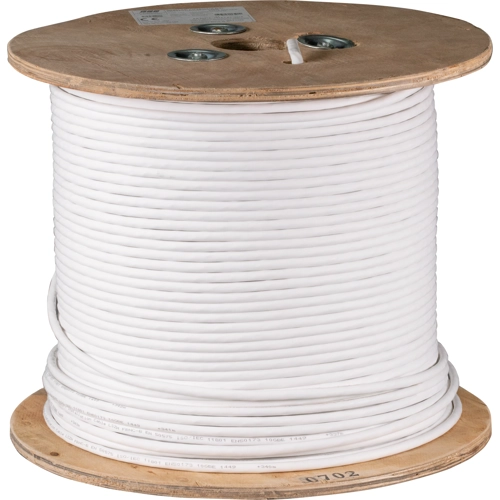

Original Packaging Reel with 18 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
