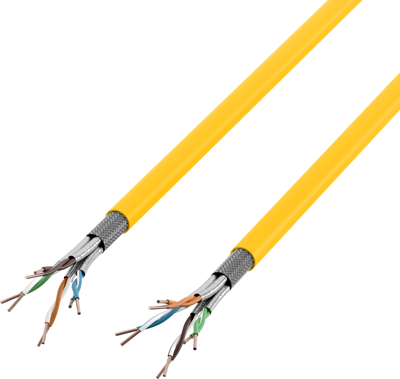

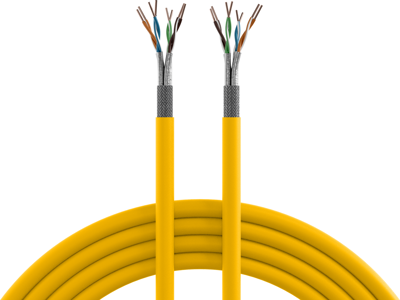

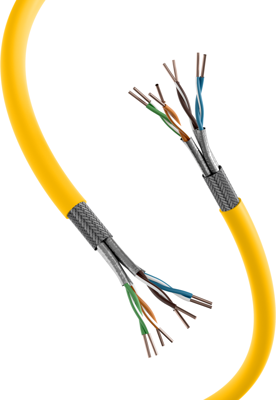

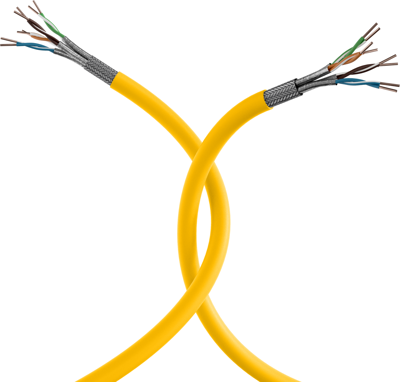

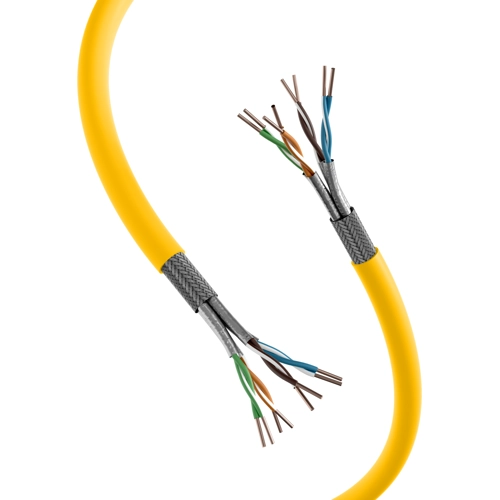

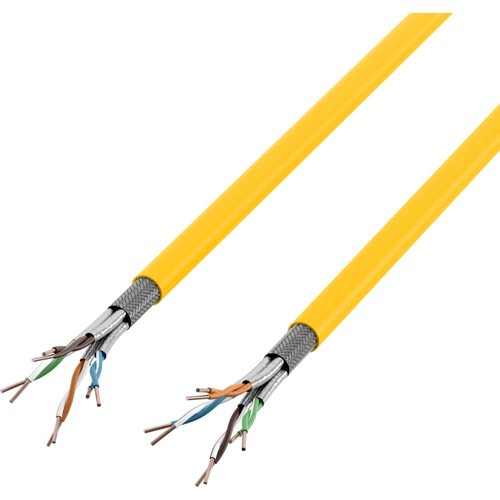

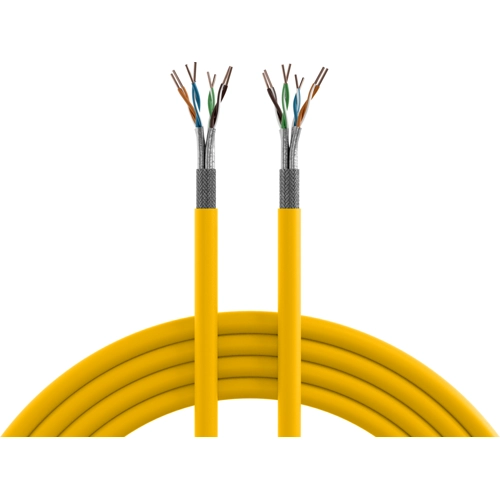

Network cable, 999830.100-CPR, INFRALAN
The installation cable 999830.100-CPR is constructed for transmissions up to 1500 MHz and exceeds with the electrical transmission properties and requirements of the category 7A. Suitable for structured cabling of Class E, EA, F and FA according to ISO/IEC 11801 (AMD 2:2009) resp. EN 50173-1 (2009). The individual stranded pairs are protected with a screen foil (PiMF) and a total braided shield against radiation into the cable, as well as this excellent protection prevents the radiation of signals from the cable out. This shielding guarantees compliance with the interference emission according to Class B EN 55022, as well as immunity to interference according to EN 55024. The stranding of the individual pairs is optimized in such a way that the delay skew between the pairs (skew) with the greatest possible decoupling (crosstalk) is minimal.
