54504.1L-CPR | INFRALAN
FO cable, multimode 50/125 µm, fibers: 4, OM3, LSZH, black, 54504.1L-CPR
Order No.: 26P1485
EAN: 4049759180430
MPN:
54504.1L-CPR
Unit Price (€ / mtr.)
1.0353 € *
Available: 0 mtr.
Available in 5 Days: 1,000 mtr.
Leadtime: On Request **

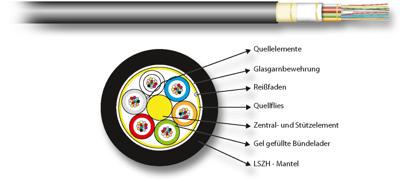

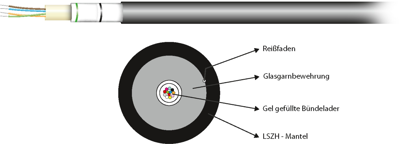

FO cable, 54504.1L-CPR, INFRALAN
The 54504.1L-CPR is a universale cable suitable for connector assembly, fixed installation indoor and outdoor in cable ducts, tubes and interconnections. Mechanical installation by winch is permitted only when using force meters with recording function Not suitable for underground laying (direct buried).
Technical specifications
| Number of fibres | 4 | |
| Outer diameter | 7 mm | |
| Colour | black | |
| Chamfer type | multimode 50/125 µm | |
| Halogen free | Yes | |
| Category | OM3 | |
| Material | LSZH | |
| Temperature range (active) | -25 °C to 70 °C | |
| Temperature range (unmoved) | -20 °C to 60 °C |
Download
Logistics
| Customs tariff number | 85447000 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
