IPK-6A-U-TPE-RT-2000 | INFRALAN

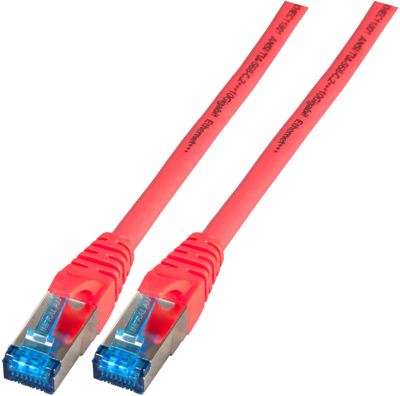

Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, S/FTP, LSZH, 20 m, red, IPK-6A-U-TPE-RT-2000
Order No.: 25P8965
EAN: 4049759188870
MPN:
IPK-6A-U-TPE-RT-2000
As an alternative, we recommend the following item:
Patch cable, RJ45 plug, straight to RJ45 plug, straight, Cat 6A, S/FTP, LSZH, 20 m, red, K5525FRT.20
Order No.: 26P1348
Manufacturer: EFB-Elektronik
per pc. 39.4842 € *
*incl. VAT plus shipping costs
Patch cord, IPK-6A-U-TPE-RT-2000, INFRALAN
The premium patch cable is component certified and is used in the following applications measured after assembly in a 4 Connector Channel Link Class EA. Every single patch cord is measured and marked with a serial number for unique coding and traceability.
Technical specifications
| Connection (1) | RJ45 plug, straight | |
| Connection (2) | RJ45 plug, straight | |
| Version | patch cable | |
| AWG cross-section | AWG 26-7 | |
| Colour | red | |
| Halogen free | Yes | |
| Cable type | S/FTP | |
| Cable length | 20 m | |
| Category | Cat 6A | |
| Material | LSZH | |
| Pin configuration | 1:1 | |
| Detent lever protection available | Yes |
Download
Logistics
| Customs tariff number | 85444210 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
