IS61C5128AS-25QLI | Integrated Silicon Solution INC

SRAM 4 Mbit, SOP-32, IS61C5128AS-25QLI

Order No.: 53S7027
EAN: 4099879150851
MPN:
IS61C5128AS-25QLI
Integrated Silicon Solution INC
IS61C5128AS-25QLI Integrated Silicon Solution INC Memory ICs

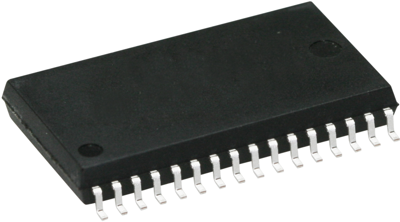

Image may differ
Unit Price (€ / pc.)
7.6636 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
7.66 € *
*incl. VAT plus shipping costs
**Subject to prior sale
84 pcs.
7.6636 €

High-Speed CMOS Static RAM, IS61C5128AS-25QLI, ISSI

The IS61C5128AS-25QLI is a high speed, 4,194,304-bit static RAMs organized as 524,288 words by 8 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 12 ns with low power consumption.

Features

  • TTL compatible interface levels
  • Fully static operation: no clock or refresh required
  • Single 5V ± 10% power supply
Technical specifications
Enclosure SOP-32
max. operating temperature 85 °C
min. operating temperature -40 °C
Assembly SMD
Voltage 4.5-5.5 V
Memory size 4 Mbit
Technology SRAM
Access time 25 s
Logistics
Customs tariff number 85423231
MSL MSL 3
Original Packaging Tray with 84 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
