IS62C256AL-45ULI | Integrated Silicon Solution INC

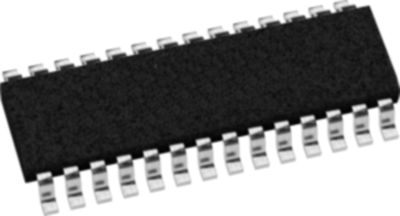

SRAM 256 kbit, SOIC-28, IS62C256AL-45ULI
Order No.: 53S7000
EAN: 4099879150592
MPN:
IS62C256AL-45ULI
Unit Price (€ / pc.)
1.8802 € *
Available: 0 pcs.
Leadtime: 8 Weeks **
CMOS static RAM, IS62C256AL-45ULI, ISSI
The IS62C256AL-45ULI is a low power, 32,768 word by 8-bit CMOS static RAM. When CE is high (deselected), the device assumes a standby mode at which the power dissipation can be reduced down to 150 µW at CMOS input levels. Easy memory expansion is provided by using an active low chip select (CE) input and an active low output enable (OE) input. The active low write enable (WE) controls both writing and reading of the memory.
Features
- Low standby power
- Fully static operation: no clock or refresh required
- TTL compatible inputs and outputs
- Single 5V power supply
Technical specifications
| Enclosure | SOIC-28 | |
| Assembly | SMD | |
| Memory size | 256 kbit | |
| Voltage | 4,5-5,5 V | |
| Access time | 45 s | |
| Clock frequency | 22 MHz | |
| Technology | SRAM | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 85 °C |
Download
Logistics
| Country of origin | SE |
| Customs tariff number | 85423245 |
| MSL | MSL 3 |
| Original Packaging | Tray mit 120 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
