IS62LV256AL-45ULI | Integrated Silicon Solution INC

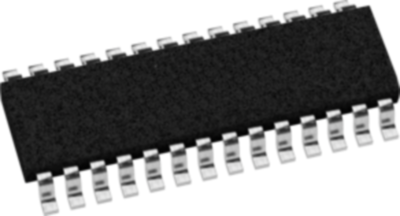

SRAM 256 kbit, SOIC-28, IS62LV256AL-45ULI
Order No.: 53S7006
EAN: 4099879150653
MPN:
IS62LV256AL-45ULI
Unit Price (€ / pc.)
2.2372 € *
Available: 0 pcs.
Available in 5 Days: 120 pcs.
Leadtime: 8 Weeks **
Total Price:
2.24 € *
Price list
Quantity
Price per unit*
5 pcs.
2.2372 €
10 pcs.
2.1063 €
25 pcs.
1.9992 €
50 pcs.
1.8921 €
*incl. VAT plus shipping costs
**Subject to prior sale
SRAM, IS62LV256AL-45ULI, ISSI
The ISSIIS62/65LV256AL is a very high-speed,low power, 32,768-word by8-bit static RAM.It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields access times as fast as 15 ns maximum.
Features
- High-speed access time: 20, 45 ns
- Automatic power-down when chip is deselected
- CMOS low power operation
- TTL compatible interface levels
Technical specifications
| Enclosure | SOIC-28 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 3-3.6 V | |
| Memory size | 256 kbit | |
| Clock frequency | 22 MHz | |
| Technology | SRAM | |
| Access time | 45 s |
Download
Logistics
| Country of origin | SE |
| Customs tariff number | 85423245 |
| MSL | MSL 3 |
| Original Packaging | Tray with 120 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
