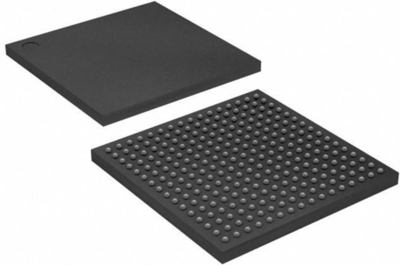

EP2C5F256I8N | INTEL
FPGA Cyclone® II Family 402.58MHz 90nm 1.2V, EP2C5F256I8N
Unit Price (€ / pc.)
30.7734 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.77 € *
Price list
Quantity
Price per unit*
1 pcs.
30.7734 €
10 pcs.
24.6092 €
60 pcs.
20.5037 €
120 pcs.
18.9448 €
180 pcs.
17.5763 €
*incl. VAT plus shipping costs
**Subject to prior sale
FPGA, EP2C5F256I8N, Intel
The EP2C5F256I8N is a device that extends the low-cost FPGA density range to 68,416 logic elements (LEs) and provide up to 622 usable I/O pins and up to 1.1 Mbits of embedded memory.
Features
- High-density architecture with 4,608 to 68,416 Les
- Variable port configurations of ×1, ×2, ×4, ×8, ×9, ×16, ×18, ×32, and ×36
- Flexible clock management circuitry
- Fast serial configuration allows configuration times less than 100 ms
- Nios II embedded processor support
Applications
- Low cost applications
Technical specifications
| Number of I/Os | 158 | |
| Number of LABs/CLBs | 288 | |
| Number of logical elements | 4608 | |
| Enclosure | FBGA-256 | |
| max. operating temperature | 85 °C | |
| min. operating temperature | -40 °C | |
| Assembly | SMD | |
| Voltage | 1.15-1.25 V | |
| Memory size | 119.808 kbit |
Download
Logistics
| Customs tariff number | 85423990 |
| MSL | MSL 3 |
| Original Packaging | Tray with 60 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
