8009-004.01 | Inter Bär
Lamp foot switch, latching, 1 pole, 1 Form A (N/O), Off-On, 2 A/250 VAC, 8009-004.01
Order No.: 05N9462
EAN: 4011644001311
MPN:
8009-004.01
Unit Price (€ / pc.)
14.0658 € *
Available: 51 pcs.
Leadtime: On Request **
Total Price:
14.07 € *
Price list
Quantity
Price per unit*
1 pcs.
14.0658 €
10 pcs.
12.1856 €
50 pcs.
10.7933 €
100 pcs.
9.3772 €
500 pcs.
8.6751 €
*incl. VAT plus shipping costs
**Subject to prior sale

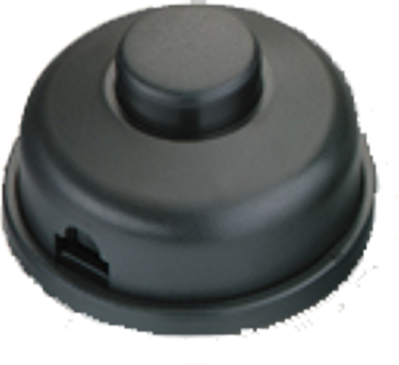

Luminary foot switches, type Inter Bär 8009-.
Make/break switch, single-pole, 2.0 (1.0) A/250 VAC, with M 2.6 jack contact and 2 terminals, screwed housing and strain relief, enclosure mounting via snap-on mechanism on the base.
Type: 004.01, black housing and button
Technical specifications
| Connection | screw connection | |
| Color of body | black | |
| Pin number | 1 pole | |
| Latching switching function | 1 Form A (N/O) | |
| Breaking capacity | 2 A/250 VAC | |
| Shift position | Off-On |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
