155431.006D01 | Inter Control

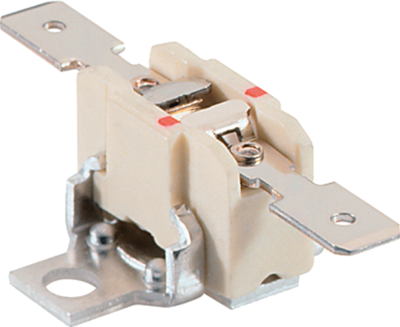

Thermal fuse, 229 °C, 230 V, 15 A
Unit Price (€ / pc.)
5.1646 € *
Available: 180 pcs.
Next delivery: 2,000 pcs. on 2025-03-24
Leadtime: 4 Weeks **
Total Price:
5.16 € *
Price list
Quantity
Price per unit*
1 pcs.
5.1646 €
10 pcs.
4.5458 €
100 pcs.
3.9865 €
250 pcs.
3.8318 €
1000 pcs.
3.5819 €
*incl. VAT plus shipping costs
**Subject to prior sale
Thermal fuses, type Inter Control Minimelt Plus.
Features: high-speed response, ceramic insulator, high continuous operating temperature. Rated voltage to VDE/UL: 230/120 V. Rated current to VDE/UL: 13.5/15 A. Cut-off current to VDE/UL: 20.3/22.5 A. Leakage current resistance: PTI >250. Certifications: VDE EN 60691, UL 1020. Height: 12.7 mm.
Technical attributes (type, rated temperature, high continuous operating temperature): 155431.006D01, 229 °C, 205 °C
Technical specifications
| Bemessungstemperatur | 229 °C | |
| Grenztemperatur | 500 °C | |
| Nennspannung (AC) | 230 V | |
| Nennstrom | 15 A |
Download
Logistics
| Ursprungsland | CZ |
| Zolltarifnummer | 90321080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
