BVS-A-R001-1 | Isabellenhütte
Resistor, metal plate, SMD 3920, 1 mΩ, 5 W, ±1 %, BVS-A-R001-1
Unit Price (€ / pc.)
2.7727 € *
Available: 213 pcs.
Leadtime: On Request **
Total Price:
2.77 € *
Price list
Quantity
Price per unit*
1 pcs.
2.7727 €
25 pcs.
2.3562 €
100 pcs.
2.1896 €
250 pcs.
2.0706 €
3000 pcs.
1.7612 €
*incl. VAT plus shipping costs
**Subject to prior sale

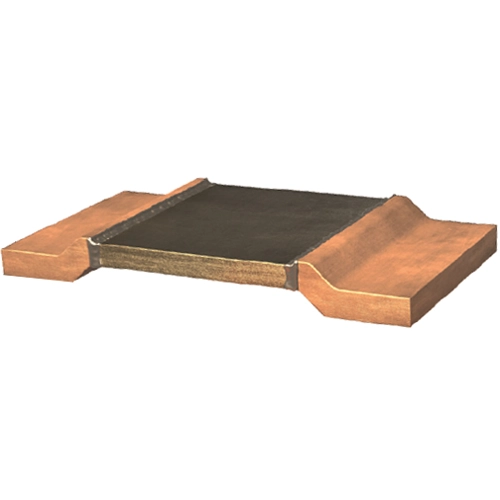

SMD precision resistors, size 3920, 2.5 to 5.0 W, series ISA-WELD, type Isabellenhütte BVS.
Suitable for use as two-wire resistor with very low resistance and low inductance, four-wire connection on the solder pad. Conceived especially for currents up to 160 A (0.2 mohm)
1.0 % tolerance, type BVS.

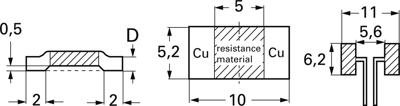

Technical specifications
| ohmscher Widerstand | 1 mΩ | |
| Bauform | SMD 3920 | |
| Höhe | 0.5 mm | |
| Länge | 10 mm | |
| Leistung | 5 W | |
| max. Temperatur | 170 °C | |
| min. Temperatur | -65 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallplatte | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 3.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
