SMK-R033-1.0 | Isabellenhütte
Resistor, metal foil, SMD 1206 (3216), 33 mΩ, 1 W, ±1 %, SMK-R033-1.0
Unit Price (€ / pc.)
1.6303 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
100 pcs.
1.6303 €
1000 pcs.
1.3923 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD precision resistors, size 1206, 1.0 W, series ISA-PLAN, type Isabellenhütte SMK.
Suitable for use as shunt resistance in switching mode power supplies, power modules, frequency converters, and control units
1.0 % tolerance.

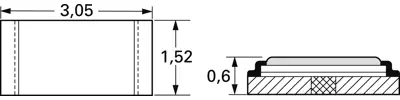

Technical specifications
| ohmic resistance | 33 mΩ | |
| Design | SMD 1206 (3216) | |
| Width | 1.6 mm | |
| Height | 0.5 mm | |
| Length | 3.05 mm | |
| Power | 1 W | |
| max. operating temperature | 170 °C | |
| min. operating temperature | -65 °C | |
| Tolerance | ±1 % | |
| Technology | metal foil | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 12,500 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
