SMK-R100-1.0 | Isabellenhütte
Resistor, metal foil, SMD 1206 (3216), 100 mΩ, 1 W, ±1 %, SMK-R100-1.0
Unit Price (€ / pc.)
2.0944 € *
Available: 56 pcs.
Leadtime: 1 Week **
Total Price:
2.09 € *
Price list
Quantity
Price per unit*
1 pcs.
2.0944 €
25 pcs.
1.7731 €
100 pcs.
1.6422 €
250 pcs.
1.5589 €
1000 pcs.
1.4280 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD precision resistors, size 1206, 1.0 W, series ISA-PLAN, type Isabellenhütte SMK.
Suitable for use as shunt resistance in switching mode power supplies, power modules, frequency converters, and control units
1.0 % tolerance.
Technical specifications
| ohmscher Widerstand | 100 mΩ | |

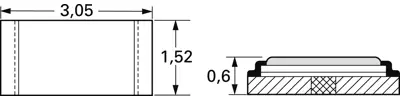

| Bauform | SMD 1206 (3216) | |
| Breite | 1.6 mm | |
| Höhe | 0.5 mm | |
| Länge | 3.05 mm | |
| Leistung | 1 W | |
| max. Temperatur | 170 °C | |
| min. Temperatur | -65 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallfolie | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
