Resistor, metal foil, SMD 2010 (5025), 1 Ω, 2 W, ±1 %, SMP-1R00-1.0
Unit Price (€ / pc.)
2.4157 € *
Available: 9,784 pcs.
Next delivery: 1,300 pcs. on 2025-01-17
Leadtime: On Request **
Total Price:
2.42 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4157 €
25 pcs.
2.0587 €
100 pcs.
1.9040 €
250 pcs.
1.8088 €
1000 pcs.
1.6422 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD precision resistor, size 2010, 2.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte SMP.
Suitable for use as shunt resistors in power hybrids, power modules, or switching mode power supplies

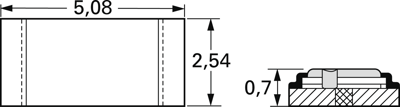

Technical specifications
| ohmic resistance | 1 Ω | |
| Design | SMD 2010 (5025) | |
| Width | 2.5 mm | |
| Height | 0.7 mm | |
| Length | 5.08 mm | |
| Power | 2 W | |
| max. operating temperature | 170 °C | |
| min. operating temperature | -55 °C | |
| Tolerance | ±1 % | |
| Technology | metal foil | |
| Temperature coefficient | ±50 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Reel with 5,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
