SMS-R0075-1.0 | Isabellenhütte
Resistor, metal foil, SMD 2512 (6330), 7.5 mΩ, 3 W, ±1 %, SMS-R0075-1.0
Unit Price (€ / pc.)
1.8088 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
1.81 € *
Price list
Quantity
Price per unit*
100 pcs.
1.8088 €
1000 pcs.
1.5351 €
*incl. VAT plus shipping costs
**Subject to prior sale

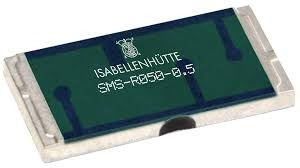

SMD precision resistors, size 2512, 3.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte SMS.
Suitable for use as two-wire resistor, four-wire connection on the solder pad. Ideal for clocked applications due to low inductance
Technical specifications
| ohmscher Widerstand | 7.5 mΩ | |
| Bauform | SMD 2512 (6330) | |
| Breite | 3 mm | |
| Höhe | 0.8 mm | |
| Länge | 6.35 mm | |
| Leistung | 3 W | |
| max. Temperatur | 170 °C | |
| min. Temperatur | -65 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallfolie | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
