SMT-R005-1.0 | Isabellenhütte

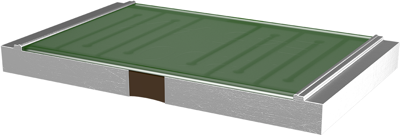

Resistor, metal foil, SMD 2817, 5 mΩ, 7 W, ±1 %, SMT-R005-1.0
Unit Price (€ / pc.)
2.5585 € *
Available: 1,566 pcs.
Leadtime: 1 Week **
Total Price:
2.56 € *
Price list
Quantity
Price per unit*
1 pcs.
2.5585 €
25 pcs.
2.1777 €
100 pcs.
2.0111 €
250 pcs.
1.9159 €
1000 pcs.
1.7374 €
*incl. VAT plus shipping costs
**Subject to prior sale
SMD precision resistor, size 2817, 2.0 to 5.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte SMT.

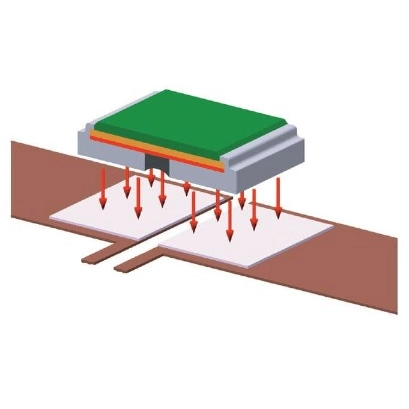

Suitable for use as two-wire resistor, four-wire connection on the solder pad. Ideal for clocked applications due to low inductance
Load rating 5.0 W.
Technical specifications
| ohmscher Widerstand | 5 mΩ | |
| Bauform | SMD 2817 | |
| Höhe | 0.8 mm | |
| Länge | 7.1 mm | |
| Leistung | 7 W | |
| max. Temperatur | 170 °C | |
| min. Temperatur | -55 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallfolie | |
| Temperaturkoeffizient | ±50 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 5.000 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
