VMK-R200-1.0 | Isabellenhütte
Resistor, metal foil, SMD 1206 (3216), 200 mΩ, 1 W, ±1 %, VMK-R200-1.0
Unit Price (€ / pc.)
2.2491 € *
Available: 940 pcs.
Leadtime: 2 Weeks **
Total Price:
2.25 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2491 €
25 pcs.
1.9159 €
100 pcs.
1.7612 €
250 pcs.
1.6779 €
1000 pcs.
1.5351 €
*incl. VAT plus shipping costs
**Subject to prior sale

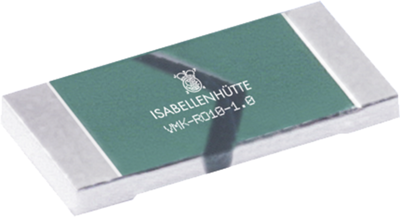

SMD precision resistor, size 1206, 1.0 W, tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte VMK.
Suitable for use as measuring resistance in switching mode power supplies, power modules, frequency converters, controllers and power hybrids
Technical specifications
| ohmscher Widerstand | 200 mΩ | |
| Bauform | SMD 1206 (3216) | |
| Breite | 1.6 mm | |
| Höhe | 0.4 mm | |
| Länge | 3.05 mm | |
| Leistung | 1 W | |
| max. Temperatur | 170 °C | |
| min. Temperatur | -65 °C | |
| Toleranz | ±1 % | |
| Technologie | Metallfolie | |
| Temperaturkoeffizient | ±20 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Rolle mit 12.500 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
