Metal film resistor, 1.8 Ω, 3 W, ±1 %, PBH-1R80-F1-1.0
Unit Price (€ / pc.)
37.0685 € *
Available: 151 pcs.
Leadtime: On Request **
Total Price:
37.07 € *
Price list
Quantity
Price per unit*
1 pcs.
37.0685 €
10 pcs.
26.4775 €
25 pcs.
22.6338 €
50 pcs.
19.6707 €
105 pcs.
17.8857 €
*incl. VAT plus shipping costs
**Subject to prior sale

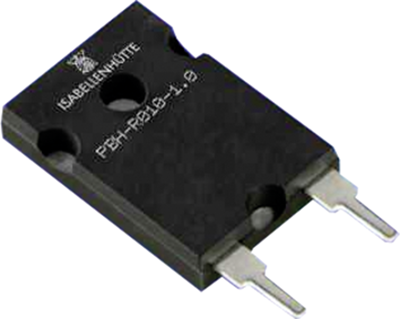

Precision metal film resistor, 3.0/10 W. tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte PBH.F1.
Widely identical with the TO247 design for power transistors, with center mounting hole and large base plate for optimized heat transfer.
Features
- High pulse power rating
- Excellent long term stability
- Low inductance
Applications
- Power modules
- Frequency converters
- Switch mode power supplies

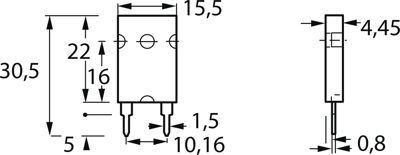

Technical specifications
| ohmscher Widerstand | 1.8 Ω | |
| Ausführung | Präzisions-Metall-Schichtwiderstand | |
| Bauform | radial | |
| Breite | 4.45 mm | |
| Höhe | 22.5 mm | |
| Isolationsspannung | 500 V | |
| Länge | 15.5 mm | |
| Leistung | 3 W | |
| max. Temperatur | 125 °C | |
| min. Temperatur | -55 °C | |
| Montage | THT | |
| Nennbelastbarkeit ohne Kühlfläche | 10 W | |
| Toleranz | ±1 % | |
| Temperaturkoeffizient | 50 ppm/K |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85332100 |
| Originalverpackung | Stange mit 35 Stück |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
