PBV-R010-F1-1.0 | Isabellenhütte
Metal film resistor, 10 mΩ, 3 W, ±1 %, PBV-R010-F1-1.0
Unit Price (€ / pc.)
20.2657 € *
Available: 0 pcs.
Next delivery: 158 pcs. on 2025-03-28
Leadtime: 25 Weeks **
Total Price:
20.27 € *
Price list
Quantity
Price per unit*
1 pcs.
20.2657 €
5 pcs.
18.7544 €
10 pcs.
17.6953 €
25 pcs.
16.6957 €
50 pcs.
15.8984 €
*incl. VAT plus shipping costs
**Subject to prior sale

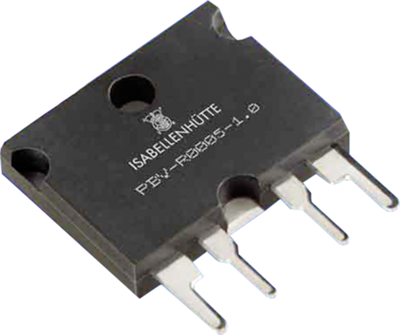

Precision metal film resistor, 3.0/10 W. tolerance 1.0 %, series ISA-PLAN, type Isabellenhütte PBV.F1.
With four-wire connection. Conceived especially for use in the low-resistance range to ensure minimum temperature coefficients and independence of the resistor value from soldering quality. The design is widely compatible with modern power transistors. A center mounting hole is used to mount the resistor on a heatsink in order to optimize heat transfer via the large base plate.
Features
- 4-terminal connection
- Excellent long-term stability
- RoHS compliant
Applications
- Power modules
- Frequency converters
- Switch mode power supplies

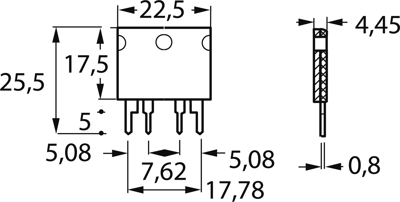

Technical specifications
| ohmic resistance | 10 mΩ | |
| Version | Precision metal film resistor | |
| Design | radial | |
| Width | 4.45 mm | |
| Height | 17.5 mm | |
| Isolation voltage | 500 V | |
| Length | 22.5 mm | |
| Power | 3 W | |
| max. operating temperature | 125 °C | |
| min. operating temperature | -55 °C | |
| Assembly | THT | |
| nominal load capacity without cooling surface | 10 W | |
| Tolerance | ±1 % | |
| Temperature coefficient | 30 ppm/K |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85332100 |
| Original Packaging | Bar with 25 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
