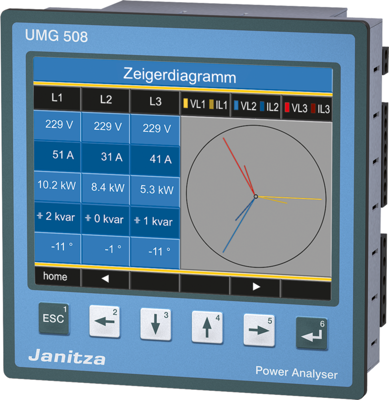

UMG 508 230V (UL) | Janitza
Energy meter, (L x W x H) 144 x 144 x 81 mm, UMG 508 230V (UL)
Unit Price (€ / pc.)
1,516.06 € *
Available: 0 pcs.
Leadtime: On Request **
Network analyser, 52.21.011, Janitza
Network analyser UMG 508 (UL), supply voltage: 95 - 240V (50/60Hz), 80 - 280V DC , installation category: 300V CATIII, 4 voltage measurement inputs, measurement category: 600V CATIII, Measurement in three-phase 4-wire systems up to 417V/720V (IEC), Measurement in three-phase 4-wire systems up to 347V/600V (UL), Measurement in three-phase 3-wire systems up to 600V, Measurement range: L - N: 10 - 600V, 40 - 70Hz, Measurement range: L - L: 18 - 1000V, 40 - 70Hz, 4 current measurement inputs for current transformers. ../1 or.../5A, measuring category: 300V CATIII, measuring range: 0.001...7.4Arms, , 8 digital inputs, 5 digital outputs, , data memory: 256MB Flash, , interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX
Features
- Determination of energy costs
- Breakdown and allocation of energy consumption
- Continuous increase in energy effi ciency
- Cost reduction
- Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
Technical specifications
| Width | 144 mm | |
| Weight | 1080 g | |
| Height | 81 mm | |
| Length | 144 mm | |
| Product type | energy meter |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 90303200 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
