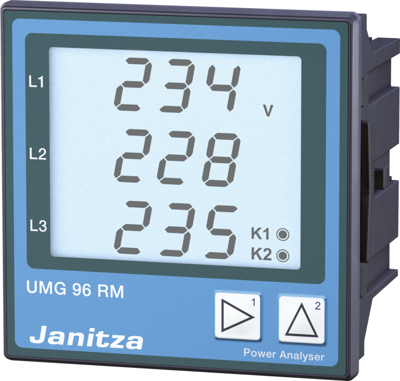

UMG 96RM-M (90V..277V) | Janitza
Energy meter, (L x W x H) 96 x 96 x 48 mm, UMG 96RM-M (90V..277V)
Unit Price (€ / pc.)
403.4100 € *
Available: 0 pcs.
Available in 5 Days: 100 pcs.
Leadtime: On Request **
Network analyser, 52.22.069, Janitza
Network analyser UMG 96RM-M with M-Bus , supply voltage 90V...277V (50/60Hz), 90V...250V DC, 300V CATIII, voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs (L-N: 20V-300V, L-L: 34V- 520V, 45Hz-65Hz), 3 current measurement inputs 0... 5A, response current 5mA, Measurement in three-phase 4-wire systems with grounded neutral conductor up to max. 277V / 480V, Measurement in unearthed three-phase 3-wire systems up to max. 480V, Measurement in single-phase 3-wire systems up to max. 220V-440V, Measurement in single-phase 2-wire systems up to max. 220V, 2 digital / pulse outputs, Interface: M-Bus
Features
- Determination of energy costs
- Breakdown and allocation of energy consumption
- Continuous increase in energy effi ciency
- Cost reduction
- Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
Technical specifications
| Breite | 96 mm | |
| Gewicht | 300 g | |
| Höhe | 48 mm | |
| Länge | 96 mm | |
| Produkt-Art | Energiemessgerät |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 90303200 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
