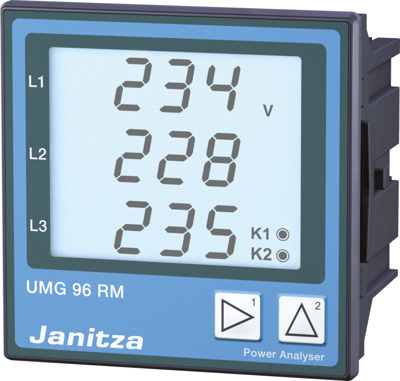

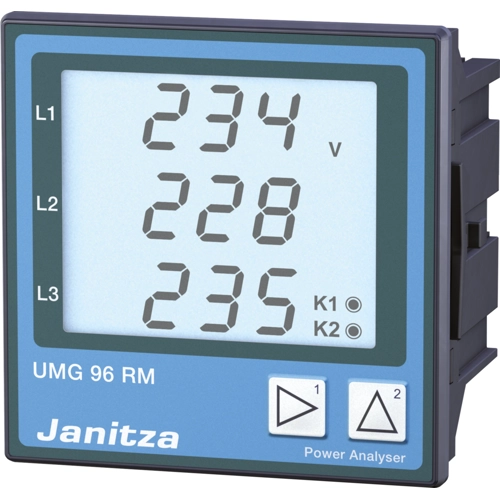

UMG 96RM-P (24V..90V) | Janitza

Network analyser, 52.22.065, Janitza

Network analyser UMG 96RM-P with Profibus, supply voltage 24V...90V (50/60Hz), 24V...90V DC, 150V CATIII, voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs (L-N: 20V-300V, L-L: 34V- 520V, 45Hz-65Hz), 3+1 current measurement inputs 0. ..5A, response current 5mA, Measurement in three-phase 4-wire systems with grounded neutral up to max. 277V / 480V, Measurement in unearthed three-phase 3-wire systems up to max. 480V, Measurement in single-phase 3-wire systems up to max. 220V-440V, Measurement in single-phase 2-wire systems up to max. 220V, 2+4 digital outputs, 4 digital inputs, Clock and data memory (5MB / 256 MB Flash), Interfaces: RS485, USB, Sub D 9-pin, Protocol: Profibus

Features

• Determination of energy costs
• Breakdown and allocation of energy consumption
• Continuous increase in energy effi ciency
• Cost reduction
• Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
