Network analyser, 52.22.091, Janitza

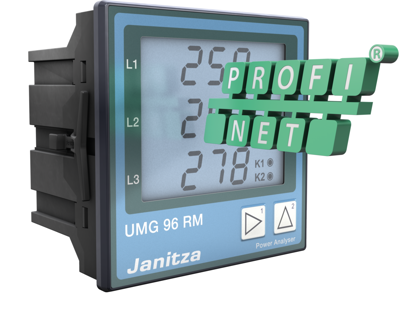

Network analyser UMG 96RM-PN with Profinet, supply voltage 24V...90V (50/60Hz), 24V...90V DC, 150V CATIII, voltage measurement, measurement category 300V CATIII, 3 voltage measurement inputs (L-N: 20V-300V, L-L: 34V- 520V, 45Hz-65Hz), 3+1 current measurement inputs 0. ..5A, response current 5mA, Measurement in three-phase 4-wire systems with grounded neutral up to max. 277V / 480V, Measurement in grounded three-phase 3-wire systems up to max. 480V, Measurement in grounded single-phase 3-wire systems up to max. 220V-440V, Measurement in grounded single-phase 2-wire systems up to max. 220V, 2 digital outputs, 3 digital inputs/outputs, configurable, 2 analog inputs, optionally as temperature or differential current measurement input, Homepage, Interfaces: RS485, Ethernet, Protocol: Profinet, TCP / IP, Modbus RTU
Features
- Determination of energy costs
- Breakdown and allocation of energy consumption
- Continuous increase in energy effi ciency
- Cost reduction
- Multifunctional power analyzers of the UMG 96RM series are an important component of energy management systems
