15.03.609 | Janitza

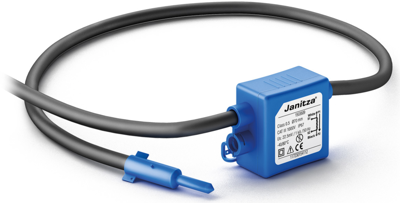

Rogowski current transformer, 1503609, Janitza

Rogowski current transformer Ø 70 mm, The Rogowski coil is used for AC current measurement of busbars and lines, The output signal of the Rogowski coil is fed to the measuring transducer, which outputs a standardized AC current of max. 1 A. Frequency bandwidth 50/60 Hz, up to 700Khz in no-load operation (without load), -accuracy to class 0.5 according to IEC 61869, -operating temperature: -40°C to +80°, -rated insulation voltage 1kV CAT III, -in conjunction with Janitza RogoTrans transducer.
