KBU812 1000/5A, 5VA, KL. 0,5 | Janitza
Cable conversion current transformer, 1000 A, for cables 85 x 125 mm, (W x H x D) 58 x 198.15 x 155 mm, KBU812 1000/5A, 5VA, KL. 0,5
Unit Price (€ / pc.)
340.3400 € *
Available: 0 pcs.
Leadtime: On Request **

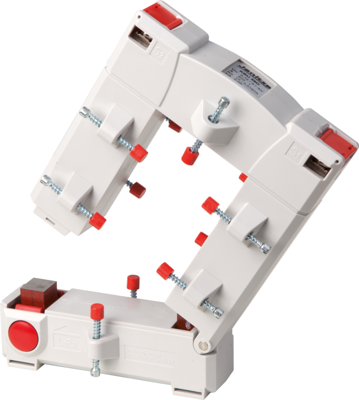

Cable surrounding current converter, 15.02.871, Janitza
Core type: split, measuring window: 80x120 mm, Ith: 60 x In/1s, overload capacity: 120% permanent, protection class: E (max 120°), protection class: IP20, ambient temp.: -5...+40°C, max. primary line dia.: Ø 28mm, connection cable: 3m, 1,5mm²
Features
- Especially suitable for digital measuring devices
- Particularly fast assembly
- For use around insulated cables up to 2 x 42 mm max.
- Color-coded secondary lines included
- Additional fixation of the transducer by two included UV-resistant cable ties
- Suitable for retrofitting, as the primary circuit does not have to be disconnected
- Ideal for use in very compact installation spaces
Technical specifications
| Ausführung | Kabelumbaustromwandler | |
| Bemessungsstrom | 1000 A | |
| Breite | 58 mm | |
| Gewicht | 1300 g | |
| Höhe | 198.15 mm | |
| Kabeldurchmesser | 85 x 125 mm | |
| Tiefe | 155 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85043129 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
