KUW2/40-250/5 | Janitza

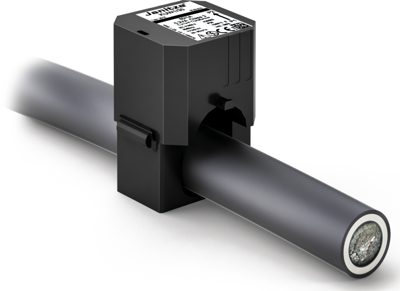

Cable surrounding current converter, 15.03.353, Janitza

250/5A, 1VA, class 1, Ith 60xIn/1s, overload capacity: 120% permanent, protection class: E (max 120°), protection class: IP20, ambient temperature: -5...+40°C, primary conductor: max diam. 28mm, connection: L=0,5m cable 1,5mm²

Features

• Especially suitable for digital measuring devices
• Particularly fast assembly
• For use around insulated cables up to 2 x 42 mm max.
• Color-coded secondary lines included
• Additional fixation of the transducer by two included UV-resistant cable ties
• Suitable for retrofitting, as the primary circuit does not have to be disconnected
• Ideal for use in very compact installation spaces
