KUW4/60-1000/5 | Janitza

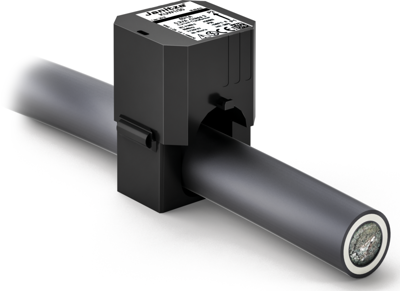

Cable surrounding current converter, 15.03.379, Janitza

1000/5A, 0,5VA, class 0,5, Environment:, Installation location: Indoors, Ambient temperature: -10°C...+55°C, Relative humidity: 5%...85%, No condensation, Protection class: IP20, Only suitable for insulated conductor.., Application:, Standard: IEC61869-2, Rated short-time thermal current: 60 x In/1s, Rated continuous thermal current: 100%, Rated insulation level: 0.72/3/-kV, Rated frequency: 50/60Hz, Insulation class: E (120°C), Cable opening: TQ50-E max. Ø 42 mm, Secondary cable: .../5A: Cable L=3m, 0.5mm², flexible

Features

• Especially suitable for digital measuring devices
• Particularly fast assembly
• For use around insulated cables up to 2 x 42 mm max.
• Color-coded secondary lines included
• Additional fixation of the transducer by two included UV-resistant cable ties
• Suitable for retrofitting, as the primary circuit does not have to be disconnected
• Ideal for use in very compact installation spaces
