R245011 | JBC

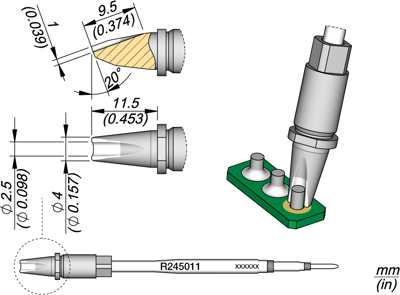

Soldering tip, special form, Ø 2.5 mm, (T x W) 1 x 11.5 mm, R245011
Unit Price (€ / pc.)
38.7702 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Barrel cartridge, R245011, JBC
This cartridge is designed for the use in Automated Soldering Processes. It is appropriate for connector soldering purposes and it is perfect for both THT and SMT cable soldering or for applications with high-power requirements such as ground plane soldering. The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.
Technical specifications
| Ausführung | Lötspitze | |
| Breite | 11.5 mm | |
| Dicke | 1 mm | |
| Durchmesser | 2.5 mm | |
| Geeignet für | TR245, TRA245 | |
| Spitzentyp | Sonderform |
Download
Logistics
| Ursprungsland | ES |
| Zolltarifnummer | 85159080 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
