R470017 | JBC

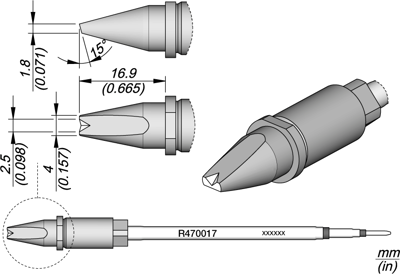

Soldering tip, Chisel shaped, (T x W) 1.8 x 16.9 mm, R470017

Order No.: 10L6824
EAN: 8427327478862
MPN:
R470017
Series: R470
JBC
R470017 JBC Soldering tips, desoldering tips and hot air nozzles
Image may differ
Unit Price (€ / pc.)
59.381 € *
Available: 0 pcs.
Leadtime: 3 Weeks **
Total Price:
59.38 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
59.381 €

Chisel cartridge, R470017, JBC

This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes. The groove in the cartridge allows easy access of the dispensed tin to the solder joint. The new design features a square cross-section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

Technical specifications
Version soldering tip
Width 16.9 mm
Thickness 1.8 mm
Suitable for TR470, TRA470
Peak type Chisel shaped
Logistics
Country of origin ES
Customs tariff number 85159080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
