R470036 | JBC

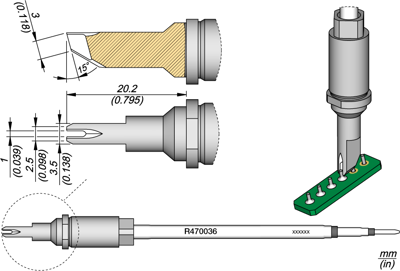

Soldering tip, chisel shaped, (T x W) 1 x 14 mm, R470036

Order No.: 10L6842
EAN: 8427327552470
MPN:
R470036
Series: R470
R470036 JBC Soldering tips, desoldering tips and hot air nozzles
Image may differ
Unit Price (€ / pc.)
58.6194 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
58.62 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
58.6194 €

Drag cartridge, R470036, JBC

This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes. It is appropriate for Through-Hole drag soldering connectors or components, even with pins connected to ground planes. The new design features a square cross_x0002_section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.

Technical specifications
Version Lötspitze
Width 14 mm
Thickness 1 mm
Suitable for TR470, TRA470
Peak type Meißelform
Logistics
Country of origin ES
Customs tariff number 85159080
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
