R470041 | JBC

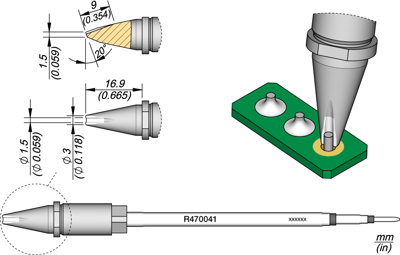

Soldering tip, Special form, Ø 1.5 mm, (T x W) 1.5 x 16.9 mm, R470041
Unit Price (€ / pc.)
59.381 € *
Available: 0 pcs.
Leadtime: 1 Week **
Barrel cartridge, R470041, JBC
This cartridge is designed for the use in Automated and Heavy-Duty Soldering Processes. It is appropriate for connector soldering purposes and it is perfect for both THT and SMT cable soldering or for applications with high-power requirements such as ground plane soldering. The new design features a square cross_x0002_section that perfectly centers the cartridge in the soldering iron and ensures accurate vertical positioning. In addition, the cartridge can be placed/used in 4 different positions, which can be changed in steps of 90º.
Technical specifications
| Version | soldering tip | |
| Width | 16.9 mm | |
| Thickness | 1.5 mm | |
| diameter | 1.5 mm | |
| Suitable for | TR470, TRA470 | |
| Peak type | Special form |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85159080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
