20050 | Jokari
Stripping pliers for PVC-coated cables, 0.2-6.0 mm², AWG 24-10, cable Ø 6-15 mm, L 165 mm, 91 g, 20050
Order No.: 05L7824
EAN: 4011391200500
MPN:
20050
Super 4 plus
Unit Price (€ / pc.)
20.1110 € *
Available: 3 pcs.
Leadtime: 4 Weeks **

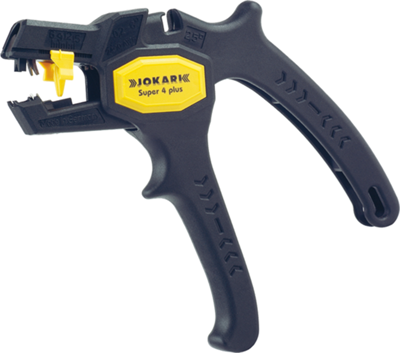

Wire strippers Super 4 plus, type Jokari 20050
Ergonomic automatic wire stripper for solid, flexible and stranded wires from 0.2 to 6.0 mm² (AWG 24 to 10), it is not necessary to adjust the tool to the cross-section. With well-positioned diagonal cutter on the outer edge for conductors to max. 2.5 mm².
Length stop: 6.0 to 15 mm
Material stripper body: glass fiber-reinforced Polyamide
Tests: TÜV and GS
Weight: 90 g.
Type: 20050
Technical specifications
| Ausführung | Abisolierzange | |
| AWG-Leiterquerschnitt | AWG 24-10 | |
| Geeignet für | Leiter mit PVC-Isolation | |
| Gewicht | 91 g | |
| Länge | 165 mm | |
| Leiterdurchmesser | 6-15 mm | |
| Leiterquerschnitt | 0,2-6,0 mm² | |
| VDE-/1000V-geprüft | No |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 82032000 |
Compliance
| RoHS konform | not_relevant |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
