40026 | Jokari
Stripping tool for PVC Wires, 0.08-2.5 mm², AWG 28-18, cable-Ø 0.4-12 mm, L 102 mm, 34.5 g, 40026
Unit Price (€ / pc.)
31.0471 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

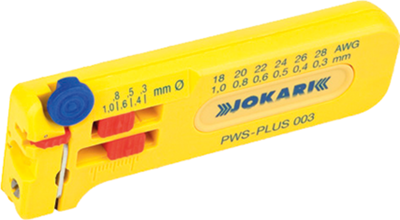

Miniature strippers PWS-Plus /ESD-Plus, type Jokari 400.
Light-weight, ergonomic precision tool for stripping PVC cables and stranded wires, adjustable for 6 different cable diameters. Integrated cutter for copper wires to max. 0.8 mm. Adjustable length stop up to 15 mm. Suitable for insulations such as PVC, Tefzel, Teflon, Mylar, or Kynar; Dimensions: L 102, W 42, H 14 mm. Weight: 34.5 g.
Miniature strippers PWS-Plus, type 400.
Technical attributes (type, stripping range in AWG, stripping range in mm): 40026, 28 to 18 AWG, 0.30 to 1.0 mm
Technical specifications
| Version | stripping tool | |
| AWG cross-section | AWG 28-18 | |
| Suitable for | PVC Wires | |
| Weight | 34.5 g | |
| Length | 102 mm | |
| Cable Diameter | 0.4-12 mm | |
| Cable cross-section | 0.08-2.5 mm² | |
| 1000V Insulated | No |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 82119300 |
Compliance
| RoHS conform | not_relevant |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
