BUTTON22NA-02 | joy-iT
Emergency stop, rotary release, mounting Ø 22 mm, illuminated, red, 250 V, 1 Form A (N/O) + 1 Form B (N/C), BUTTON22NA-02
Order No.: 12G1396
EAN: 4250236825090
MPN:
BUTTON22NA-02
Unit Price (€ / pc.)
22.2411 € *
Available: 20 pcs.
Leadtime: On Request **
Total Price:
22.24 € *
Price list
Quantity
Price per unit*
1 pcs.
22.2411 €
10 pcs.
21.0035 €
50 pcs.
19.7659 €
100 pcs.
18.5283 €
500 pcs.
17.2907 €
*incl. VAT plus shipping costs
**Subject to prior sale
Emergency stop pushbutton, BUTTON22NA-02, joy-iT

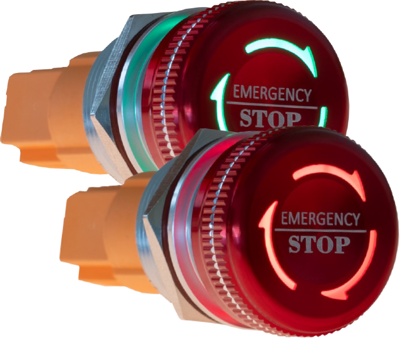

This latching emergency stop pushbutton convinces with high-quality materials, protection classes, and ergonomics. It is made of stainless steel and meets the protection classes IP67 (dust and water), IK10 (impact), and PA66 (flame). The steel pushbutton has a luminous LED ring, which can light up in two different colors (red & green). This is used to identify whether or not the emergency stop has already been pressed. When the emergency stop is pressed, the button will engage, this can be released by turning the switch.
Technical specifications
| illuminated | Yes | |
| Collar shape of the front frame | round | |
| Installation diameter | 22 mm | |
| Colour of the LED | red | |
| Height | 46.5 mm | |
| Contact function | latching | |
| Rated voltage | 250 V | |
| Resetting | rotary release | |
| Latching switching function | 1 Form A (N/O) + 1 Form B (N/C) | |
| Degree of protection (IP) | IP67/IK10 |
Download
Logistics
| Customs tariff number | 85365019 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
