JT-JDS2915 | joy-iT
2-channel signal generator, 15 MHz, mobile, JT-JDS2915
Order No.: 21K5860
EAN: 4250236817071
MPN:
JT-JDS2915
Unit Price (€ / pc.)
108.9921 € *
Available: 1 pcs.
Leadtime: 1 Week **
Signal generator, JT-JDS2915, joy-iT

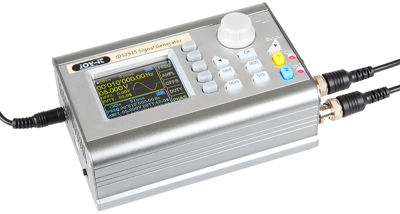

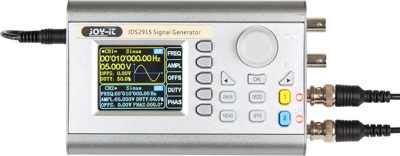

The JT-JDS2915 is a 2 channel signal generator which produces signals up to 15 MHz. The JT-JDS2915 is compact and able to be used on the go with an optionally available power bank.To operate the signal generator with a power bank, you need an additional USB to DC connection cable ( 5.5mm hollow plug ). It is in different areas of measuremet technology useable because of its different curve shapes like sine, square, triangle, pulse, half-wave and others.
Technical specifications
| Display | TFT | |
| Frequency range | 1-100 MHz | |
| Interfaces | BNC | |
| Waveforms | sine, square, triangle, pulse, half-wave |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85432000 |
| Original Packaging | Carton with 1 piece |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
