SEH-001T-P0.6 | JST

Receptacle, 0.05-0.33 mm², AWG 30-22, crimp connection, tin-plated, SEH-001T-P0.6

Order No.: 71F6008
EAN: 4099889661941
MPN:
SEH-001T-P0.6
Series: EH
JST

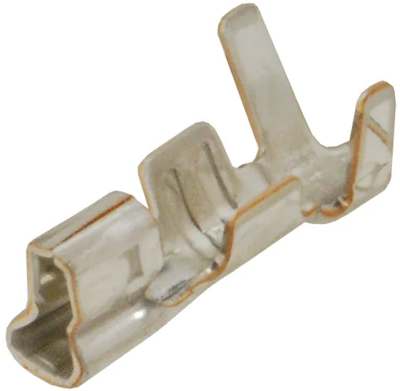

SEH-001T-P0.6 JST Crimp Contacts Image 1

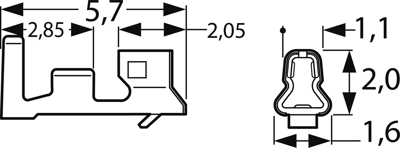

SEH-001T-P0.6 JST Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.0202 € *
Available: 124,905 pcs.
Leadtime: 30 Weeks **
Total Price:
20.23 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.0202 €
10000 pcs.
0.0178 €
50000 pcs.
0.0167 €
*incl. VAT plus shipping costs
**Subject to prior sale

Crimp contact for receptable housings, bare / EH connectors 2.5 mm series, type JST

Material: tinned phosphor bronze.

Technical attributes (type, wire cross-section, insulation diameter): SEH-001T-P0.6, 0.05 to 0.33 mm² (AWG 30 to 22), 1.0 to 1.9 mm

Technical specifications
Version receptacle
AWG cross-section AWG 30-22
Insulation diameter 1-1.9 mm
Contact connection crimp connection
Contact material phosphor bronze
contact surface tin-plated
Cable cross-section 0.05-0.33 mm²
Logistics
Country of origin MY
Customs tariff number 85366990
Original Packaging Reel with 9,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
