SPH-002T-P0.5S | JST

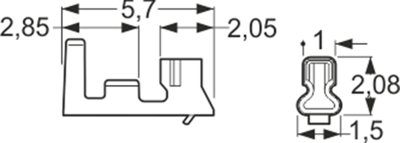

Receptacle, 0.05-0.22 mm², AWG 30-24, crimp connection, tin-plated, SPH-002T-P0.5S
Unit Price (€ / pc.)
0.0214 € *
Available: 93,400 pcs.
Leadtime: On Request **
Total Price:
10.71 € *
Price list
Quantity
Price per unit*
500 pcs.
0.0214 €
1000 pcs.
0.0190 €
50000 pcs.
0.0178 €
*incl. VAT plus shipping costs
**Subject to prior sale

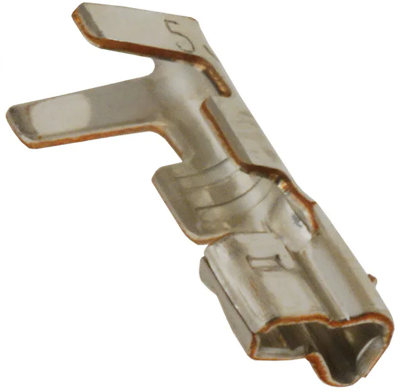

Crimp contact for receptacle housings, bare / PH connectors 2.0 mm series, type JST
Material: tinned phosphor bronze.
Technical attributes (type, wire cross-section, insulation diameter): SPH-002T-P0.5S, 0.05 to 0.22 mm² (AWG 30 to 24), 0.9 to 1.5 mm
Technical specifications
| Version | receptacle | |
| AWG cross-section | AWG 30-24 | |
| Insulation diameter | 0.9-1.5 mm | |
| Contact connection | crimp connection | |
| Contact material | phosphor bronze | |
| contact surface | tin-plated | |
| Cable cross-section | 0.05-0.22 mm² |
Download
Logistics
| Country of origin | MY |
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 8,000 pieces |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
