SZH-002T-P0.5 | JST

Receptacle, 0.08-0.13 mm², AWG 28-16, crimp connection, SZH-002T-P0.5

Order No.: 71F1010
EAN: 4099889661637
MPN:
SZH-002T-P0.5
Series: ZH
JST

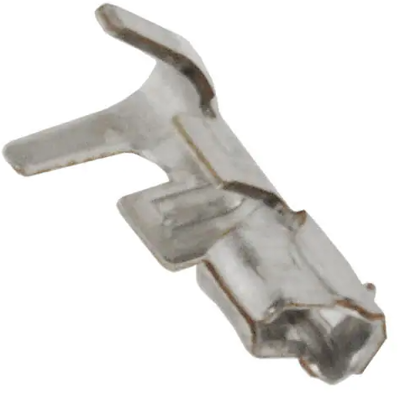

SZH-002T-P0.5 JST Crimp Contacts Image 1

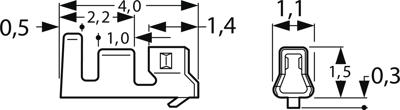

SZH-002T-P0.5 JST Crimp Contacts Image 2
Image may differ
Unit Price (€ / pc.)
0.0155 € *
Available: 308,369 pcs.
Leadtime: On Request **
Total Price:
0.15 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0155 €
1000 pcs.
0.0131 €
5000 pcs.
0.0119 €
10000 pcs.
0.0109 €
*incl. VAT plus shipping costs
**Subject to prior sale

Crimp contact, SZH-002T-P0.5, JST

The SZH-002T-P0.5 is a very small ZH connector with a mounting height of 5.6 mm and a thickness of only 3.5 mm. This product includes contact retention lances on the housing that makes insertion easier, while the dimple at the center of the contact ensures reliable contact with the post.

Features

  • Compact, low profile design
  • Housing lances
  • Reliable contact construction
  • Disortion resistant construction
  • Compatible with the ZR insulation displacement connectors
Technical specifications
Version receptacle
AWG cross-section AWG 28-16
Insulation diameter 0.8-1.1 mm
Contact connection crimp connection
Contact material phosphor bronze
Cable cross-section 0.08-0.13 mm²
Logistics
Country of origin KR
Customs tariff number 85369010
Original Packaging Reel with 13,000 pieces
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
