04R-JWPF-VSLE-S | JST

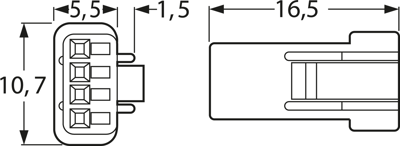

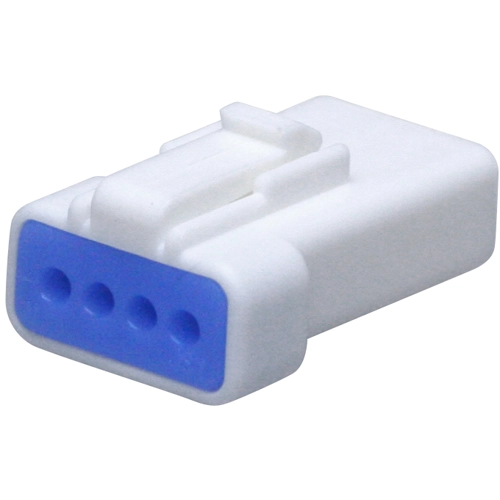

Socket housing, 4 pole, pitch 2 mm, straight, green, 04R-JWPF-VSLE-S
Unit Price (€ / pc.)
0.9282 € *
Available: 1,070 pcs.
Leadtime: 6 Weeks **
Total Price:
0.93 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9282 €
100 pcs.
0.7973 €
500 pcs.
0.7021 €
*incl. VAT plus shipping costs
**Subject to prior sale
Water-proof connectors, 2.0 mm, series JWPF, type JST.
With integrated sealing ring and interlock; Rated current: 3.0 A. Rated voltage: 100 V AC/DC. Contact resistance (new condition): max. 5.0 mohm. Insulation resistance: min. 800 Mohm. Test voltage: 1000 VAC (60 s). Degree of protection (IEC 60529): IP X7. Housing material: PBT, UL 94 V-0, white. Operating temperatures: –40 to +85 °C. Approbations: UL.
Receptacle housings, bare.
Technical attributes (type, number of poles): 04R-JWPF-VSLE-S, 4-pole
Technical specifications
| Anschluss | Crimpanschluss | |
| Anschlussoberfläche | verzinnt | |
| Anzahl der Reihen | 1 | |
| Ausführung | Buchsengehäuse | |
| Farbe | grün | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 100 V | |
| Nennstrom | 3 A | |
| Orientierung | gerade | |
| Polzahl | 4-polig | |
| Rastermaß | 2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
