B4B-ZR (LF)(SN) | JST
Pin header, 4 pole, pitch 1.5 mm, straight, ivory, B4B-ZR (LF)(SN)
Unit Price (€ / pc.)
0.1047 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
5,026.56 € *
*incl. VAT plus shipping costs
**Subject to prior sale
48000 pcs.
0.1047 €
Steckverbinder 1,5 mm Serie ZH Typ JST.
In kompakter Bauform, zuverlässige Kontaktkonstruktion; Nennstrom: 1,0 AUC, Nennspannung: 50 V AC/DC, Spannungsfestigkeit: 500 VAC (60 s), Kontaktwiderstand (Anfangswert): max. 20 mOhm, Isolationswiderstand: min. 500 MOhm, Temperaturbereich: –25 bis +85 °C. Zulassungen: TÜV, UL, CSA.
Stecksockel gerade für Leiterplatten-Montage.

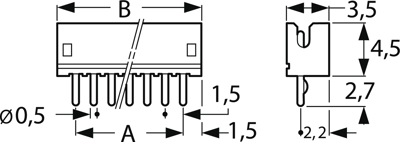

Material Gehäuse: PA 66 , glasfaserverstärkt, UL 94 V-0, Farbe: natur (elfenbein), Anschlüsse: Messing, Cu-Grundierung, verzinnt. Tabellenangaben: Typ, Polzahl, Maß A, Maß B.
Type: B4B-ZR (LF)(SN), 4-polig, A 4,5 mm, B 7,5 mm
Technical specifications
Connection | Lötstift | |
Connection plating | verzinnt | |
Number of rows | 1 | |
Version | Stiftleiste | |
Additional parts | bestückt | |
Colour | elfenbein | |
Contact type | Stift | |
contact surface | verzinnt | |
Rated voltage | 50 V | |
Rated current | 1 A | |
Orientation | gerade | |
Pin number | 4-polig | |
Grid | 1.5 mm | |
Type of locking | Ja |
Download
Logistics
Country of origin | KR |
Customs tariff number | 85366990 |
Compliance
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
