F31FDS-20V-K | JST
Plug housing, 20 pole, pitch 3.81 mm, straight, black, F31FDS-20V-K
Unit Price (€ / pc.)
1.1662 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Connectors, 3.81 mm, series J300, type JST.
3.81 mm grid, with interlock; Rated voltage: 250 V AC/DC. Surge voltage: 1500 VAC/min. Conductor cross-section: 0.08 to 2.0 mm² (AWG 28 to AWG 14). Contact resistance: max. 5.0 mohm. Insulation resistance: 1000 Mohm. Contacts: CuNi with 0.38 µm gold-plating. Housing: PBT, UL 94 V-0, black. Operating temperatures: –55 to +105 °C. Certifications: UL, CSA.
Female connector housings, dual-row, bare, series J310D, type F31FDS.

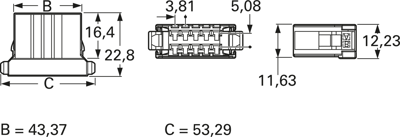

Technical attributes (type, number of poles, dimensions): F31FDS–20V–K, 20–pole, B 43.37, C53.29 mm
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 2 | |
| Ausführung | Steckergehäuse | |
| Farbe | schwarz | |
| Kontaktart | Buchse | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 10.5 A | |
| Orientierung | gerade | |
| Polzahl | 20-polig | |
| Rastermaß | 3.81 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
