F31MSP-05V-KX | JST

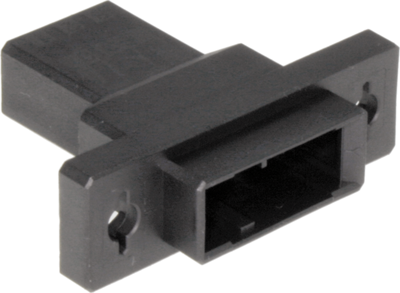

Plug housing, 5 pole, pitch 3.81 mm, straight, black, F31MSP-05V-KX
Unit Price (€ / pc.)
3.2963 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Connectors, 3.81 mm, series J300, type JST.
3.81 mm grid, with interlock; Rated voltage: 250 V AC/DC. Surge voltage: 1500 VAC/min. Conductor cross-section: 0.08 to 2.0 mm² (AWG 28 to AWG 14). Contact resistance: max. 5.0 mohm. Insulation resistance: 1000 Mohm. Contacts: CuNi with 0.38 µm gold-plating. Housing: PBT, UL 94 V-0, black. Operating temperatures: –55 to +105 °C. Certifications: UL, CSA.
Male connector housings, single-row, bare, series J310S, type F31MSP.
For front-panel mounting.

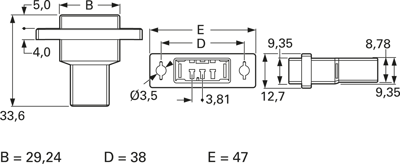

Technical attributes (type, number of poles, dimensions): F31MSP–05V–KX, 5–pole, B 29.24, D 38, D 47 mm
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Steckergehäuse | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 250 V | |
| Nennstrom | 10.5 A | |
| Orientierung | gerade | |
| Polzahl | 5-polig | |
| Rastermaß | 3.81 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
