F32FSS-02V-KX | JST

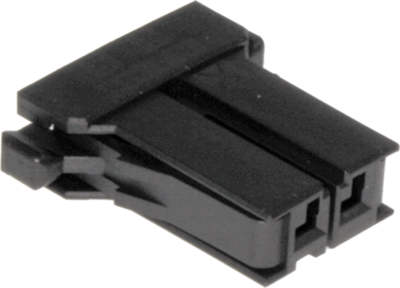

Plug housing, 2 pole, pitch 5.08 mm, straight, black, F32FSS-02V-KX
Unit Price (€ / pc.)
0.5117 € *
Available: 0 pcs.
Leadtime: 6 Weeks **
Total Price:
102.34 € *
Price list
Quantity
Price per unit*
200 pcs.
0.5117 €
2800 pcs.
0.4641 €
*incl. VAT plus shipping costs
**Subject to prior sale
Connectors, 5.08 mm, series J300, type JST.
5.08 mm grid, with interlock; Rated voltage: 600 V AC/DC. Surge voltage: 2200 VAC/min. Conductor cross-section: 0.08 to 2.0 mm² (AWG 28 to AWG 14). Contact resistance: max. 5.0 mohm. Insulation resistance: 1000 Mohm. Contacts: CuNi 0.38 µm gold-plating. Housi
Female connector housings, single-row, bare, series J320S, type F32FSS.

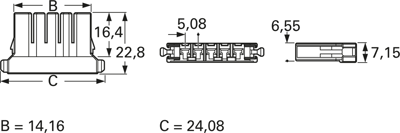

Type: F32FSS–02V–KX, 2–pole, B 14.16, C 24.08 mm
Technical specifications
| Anschluss | Crimpanschluss | |
| Anzahl der Reihen | 1 | |
| Ausführung | Steckergehäuse | |
| Farbe | schwarz | |
| Kontaktart | Stift | |
| Kontaktoberfläche | vergoldet | |
| Nennspannung | 600 V | |
| Nennstrom | 15 A | |
| Orientierung | gerade | |
| Polzahl | 2-polig | |
| Rastermaß | 5.08 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | JP |
| Zolltarifnummer | 85472000 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
