S3B-EH (LF)(SN) | JST

Pin header, 3 pole, pitch 2.5 mm, angled, white, S3B-EH (LF)(SN)

Order No.: 71F6022
EAN: 4099891011406
MPN:
S3B-EH (LF)(SN)
Series: EH
S3B-EH (LF)(SN) JST PCB Connection Systems Image 1
S3B-EH (LF)(SN) JST PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.0857 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
85.68 € *
Price list
Quantity
Price per unit*
1000 pcs.
0.0857 €
24000 pcs.
0.0785 €
*incl. VAT plus shipping costs
**Subject to prior sale

EH conncetors, 2.5 mm series, type JST

Rated current: 3.0 AUC. Rated voltage: 250 V AC/DC. Dielectric strength: 800 VAC (60 s). Contact resistance (new state): max. 10 mohm. Insulation resistance: min. 1000 Mohm. Operating temperatures: - 25 to +85 °C. Certifications: TÜV, UL, CSA.

Shrouded headers, side entry, for PCB assembly.

Housing material: PA 66, UL 94 V-0

Color: plain colored (white)

Connections: brass, copper-undercoated, tinned

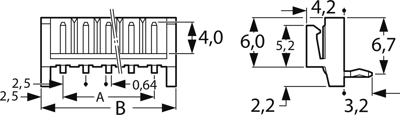

Technical attributes (type, number of poles, dimension A, dimension B): S3B-EH (LF)(SN), 3-pole, A 5.0 mm, B 10 mm

Technical specifications
Connection Lötstift
Connection plating verzinnt
Number of rows 1
Version Stiftleiste
Additional parts bestückt
Colour weiß
Contact type Stift
contact surface verzinnt
Rated voltage 250 V
Rated current 3 A
Orientation abgewinkelt
Pin number 3-polig
Grid 2.5 mm
Type of locking Ja
Logistics
Country of origin MY
Customs tariff number 85366990
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
