S3B-XH-A (LF)(SN) | JST

Pin header, 3 pole, pitch 2.5 mm, angled, white, S3B-XH-A (LF)(SN)

Order No.: 71F6411
EAN: 4099891011659
MPN:
S3B-XH-A (LF)(SN)
Series: XH

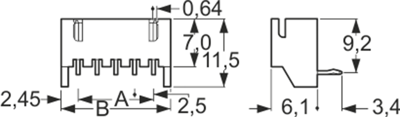

S3B-XH-A (LF)(SN) JST PCB Connection Systems Image 1

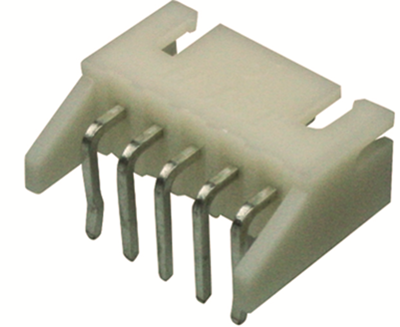

S3B-XH-A (LF)(SN) JST PCB Connection Systems Image 2
Image may differ
Unit Price (€ / pc.)
0.1261 € *
Available: 0 pcs.
Leadtime: 20 Weeks **
Total Price:
1,513.68 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.1261 €

XH connectors, 2.5 mm series, type JST.

Rated current: 3.0 AUC. Rated voltage: 250 V AC/DC. Dielectric strength: 1000 VAC (60 s). Contact resistance (new state): max. 10 mohm. Insulation resistance: min. 1000 Mohm. Operating temperatures: –25 to +85 °C. Certifications: TÜV, UL, CSA.

Through-hole type shrouded headers, side entry, for PCB assembly.

Type: S3B-XH-A (LF)(SN), 3-pole, A 5.0 mm, B 9.9 mm

Technical specifications
Anschluss Lötstift
Anschlussoberfläche verzinnt
Anzahl der Reihen 1
Ausführung Stiftleiste
Bestückung bestückt
Farbe weiß
Kontaktart Stift
Kontaktoberfläche verzinnt
Nennspannung 250 V
Nennstrom 3 A
Orientierung abgewinkelt
Polzahl 3-polig
Rastermaß 2.5 mm
Verriegelung Ja
Logistics
Ursprungsland CN
Zolltarifnummer 85366990
Compliance
RoHS konform Yes
Stand der RoHS-Richtlinie 3/31/15
SVHC frei Yes
