S4B-PH-SM4-TB (LF)(SN) | JST

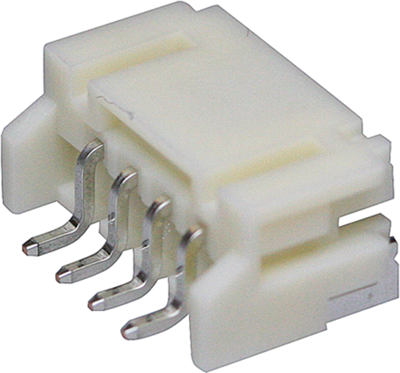

Pin header, 4 pole, pitch 2 mm, angled, ivory, S4B-PH-SM4-TB (LF)(SN)
Unit Price (€ / pc.)
0.4522 € *
Available: 4,155 pcs.
Leadtime: 20 Weeks **
Total Price:
2.26 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4522 €
50 pcs.
0.4284 €
200 pcs.
0.3927 €
*incl. VAT plus shipping costs
**Subject to prior sale
PH connectors, 2.0 mm series, type JST
Rated current: 2.0 AUC. Rated voltage: 100 V AC/DC. Dielectric strength: 800 VAC (60 s). Contact resistance (new state): max. 10 mohm. Insulation resistance: min. 1000 Mohm. Operating temperatures: - 25 to +85 °C. Certifications: UL, CSA.
SMT type shrouded headers, side entry.
Housing material: PA 66, UL 94 V-0
Color: plain colored (white)
Connections: brass, copper-undercoated, tinned

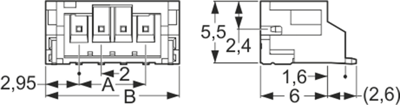

Technical attributes (type, number of poles, dimension A, dimension B): S4B-PH-SM4-TB (LF)(SN), 4-pole, A 6.0 mm, B 11.9 mm
Technical specifications
| Anschluss | SMD | |
| Anschlussoberfläche | verzinnt | |
| Ausführung | Stiftleiste | |
| Bestückung | bestückt | |
| Farbe | elfenbein | |
| Kontaktart | Stift | |
| Kontaktoberfläche | verzinnt | |
| Nennspannung | 100 V | |
| Nennstrom | 2 A | |
| Orientierung | abgewinkelt | |
| Polzahl | 4-polig | |
| Rastermaß | 2 mm | |
| Verriegelung | Ja |
Download
Logistics
| Ursprungsland | MY |
| Zolltarifnummer | 85366990 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
